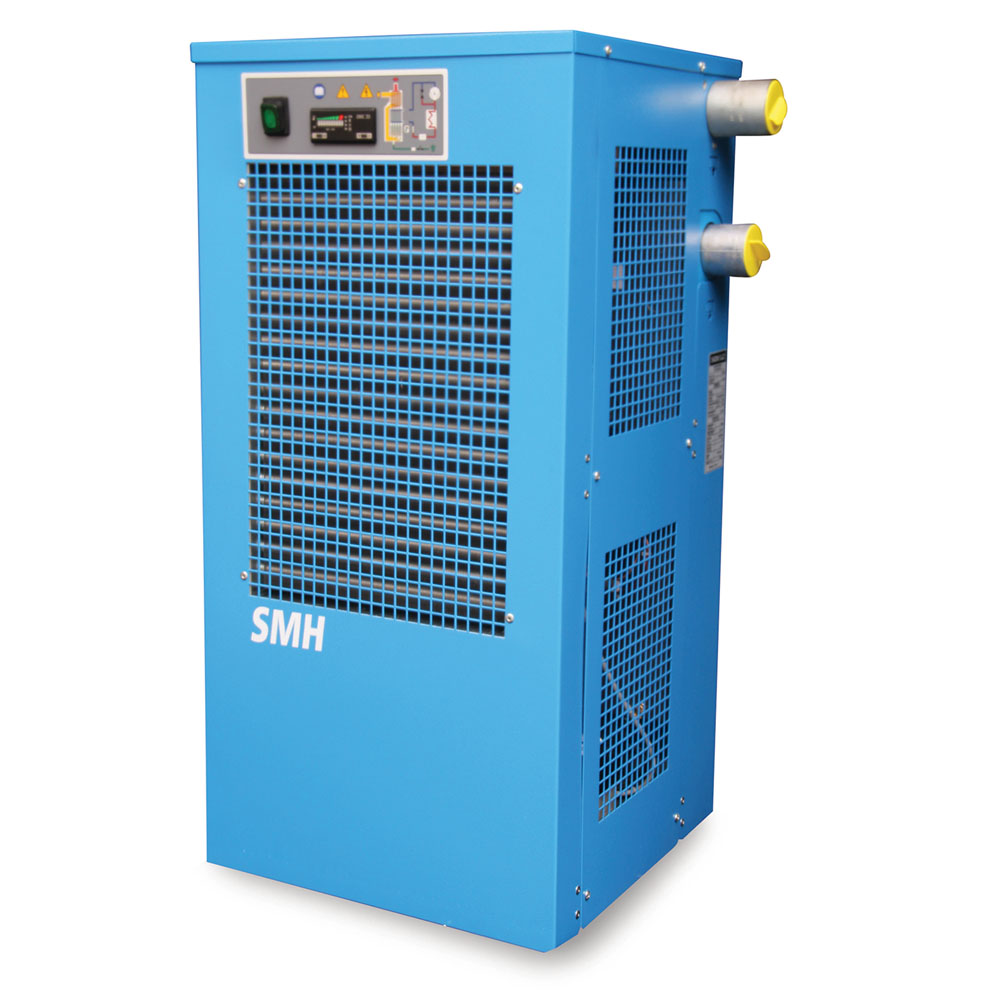

75 Nominal CFM High Temperature Air Dryer, 115V, 60HZ
75 Nominal CFM High Temperature Air Dryer, 115V, 60HZ

Disclaimer: Image shown is for reference only; actual product may vary.

Schulz

75 Nominal CFM High Temperature Air Dryer, 115V, 60HZ

SKU: 11-AC3952
(0)
$3,264.42
Direct To Consumer
Available To Order – Call Us for Details
Fast & Reliable Shipping
100% secure payments
Industry leading quality
Shipping Address

Got questions?

Feel free to get in touch

  • Vendor Schulz
  • Product Weight 99.0 lb
  • Dimensions (LxWxH) 17.5 in x 17.3 in x 35.4 in
  • connection 1" NPT-F
  • nominal cfm 75
  • phase 1
  • refrigerant type R134a
  • style High Temperature Air Dryers
  • vendor part number SMH-075-UP-TD
  • voltage 115/1/60
High Temperature Air Dryers
  • Nominal CFM ratings: 88 at 50 PDP, 81 at 45 PDP, 66 at 41 PDP
  • Flow: 4950 CFM
  • Heat Rejection: 4950 btu/h
  • Schulz SMH series
  • Built in aftercooler circuit with separate drain
  • Lower pressure drops
  • Energy eddicient refrigeration compressors
  • Run at less than 70 db(A) sound levels
  • DMC electronic controllers operate each dryers
  • *Nominal CFM conditions are: 50 PDP at +176F inlet Air, 100 PSIG and 90 F ambient conditions
