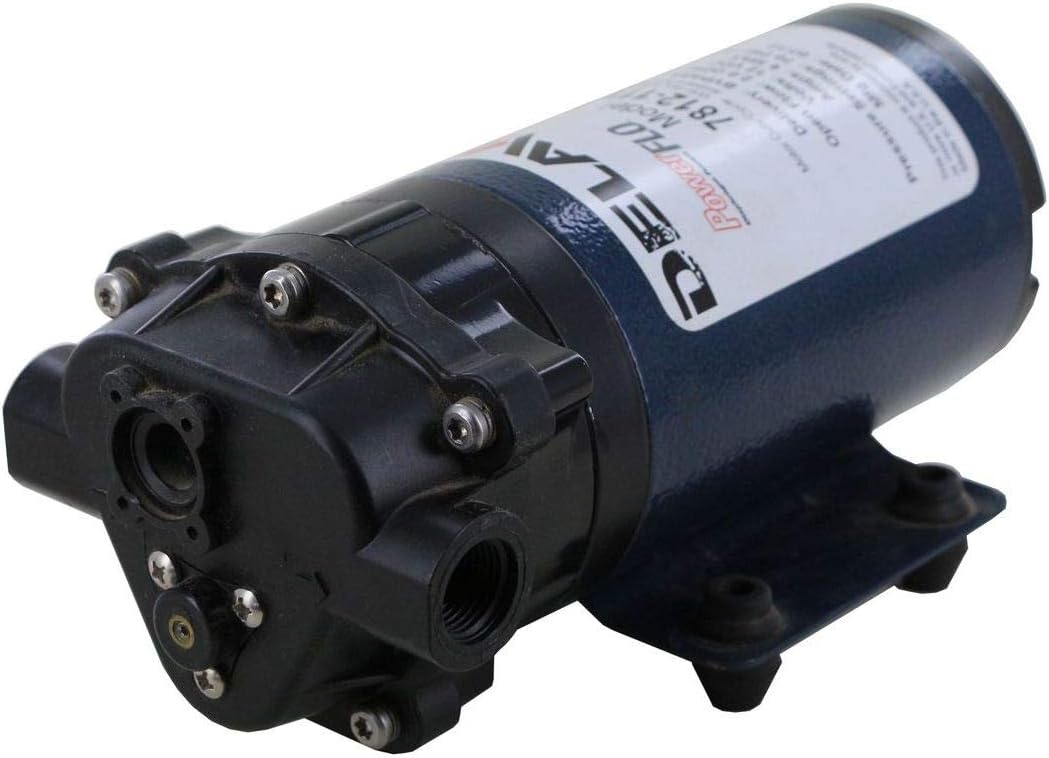

Bypass Transfer Pump
Bypass Transfer Pump

Disclaimer: Image shown is for reference only; actual product may vary.

Delavan AG Pumps

60 PSI Diaphragm Transfer Pump

SKU: 7812-111
(0)
$160.44
Direct To Consumer
Available To Order – Call Us for Details
Fast & Reliable Shipping
100% secure payments
Industry leading quality
Shipping Address

Got questions?

Feel free to get in touch

  • Vendor Delavan AG Pumps
  • Product Weight 6.0 lb
  • inlet 1/2" FNPT
  • max gpm 20
  • max psi 60
  • max temperature f 140
  • outlet 1/2" FNPT
  • priming capabilities 14 ft

Pump Features:


  • Pump Head: 3 chambers, positive displacement diaphragm pump, self priming, capable of being run dry.
  • Maximum capability of 2 GPM
  • Certifications: NSF Standard 58
  • Bypass mode available: On bypass pumps, the transfer pump will NOT shut off and the water will recirculate to the inlet side.
  • Liquid temperature: 140°F Max
  • Priming Capabilities: 14 feet
  • Inlet/Outlet: 1/2" FNPT
  • View dimensions


Motor Features:


  • 12 VDC battery, totally enclosed, non-ventilated
  • Leads: 14 AWG, 12" Long
  • Temperature Limits: Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 150°F
  • Maximum torque and operation efficiency; higher operating pressure and/or lower amperage than competitive pumps
  • Quality components for extreme performance
  • Numerous fitting option for greater mounting flexibility
