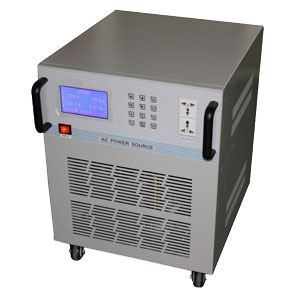

5 kVA Frequency Converter, 120V 60 Hz to 220V 50 Hz

SKU: HZ-60-1105
(0)
$5,225.83
Direct To Consumer
Available To Order – Call Us for Details
Fast & Reliable Shipping
100% secure payments
Industry leading quality
Shipping Address

Got questions?

Feel free to get in touch

  • Vendor GoHz
  • Product Weight 165.0 lb
  • input frequency 50 Hz, 60 Hz or 400 Hz ± 5%
  • input voltage 110V/120V, 220V/230V/240V ± 10%
  • output frequency 50Hz, 60Hz up to 400Hz (option)
  • output voltage 110V Setting (Low grade): 0-150V, 41.6A 220V Setting 0-300V (High grade): 0-300V, 20.8A
Features
  • The frequency converter is suitable for use with resistive, capacitive, inductive and non-linear loads
  • 50Hz, 60Hz or 400Hz input frequency
  • Adjustable 0 to 300VAC output voltage
  • Adjustable 40.0 to 499.9Hz output frequency
  • Precise 4 LED digital display output frequency, voltage, ampere and wattage
  • Full galvanically isolated, no harmonic distortion (EMI, EMC)
  • Pure sine wave output
  • Fast response time
  • Sustained 300% overload capability
  • IGBT/PWM technology enhances compact size, low noise and high reliability
  • Capable to simulate global voltage, frequency power supplies.
  • These frequency converters are equipped with electronic circuit/instant trip breaker/buzzer alarm for over
    voltage, over current, over temperature, output short circuit protection
