375 SCFM Non-Cycling Refrigerated Air Dryer, 230V, 1 Phase
375 SCFM Non-Cycling Refrigerated Air Dryer, 230V, 1 Phase

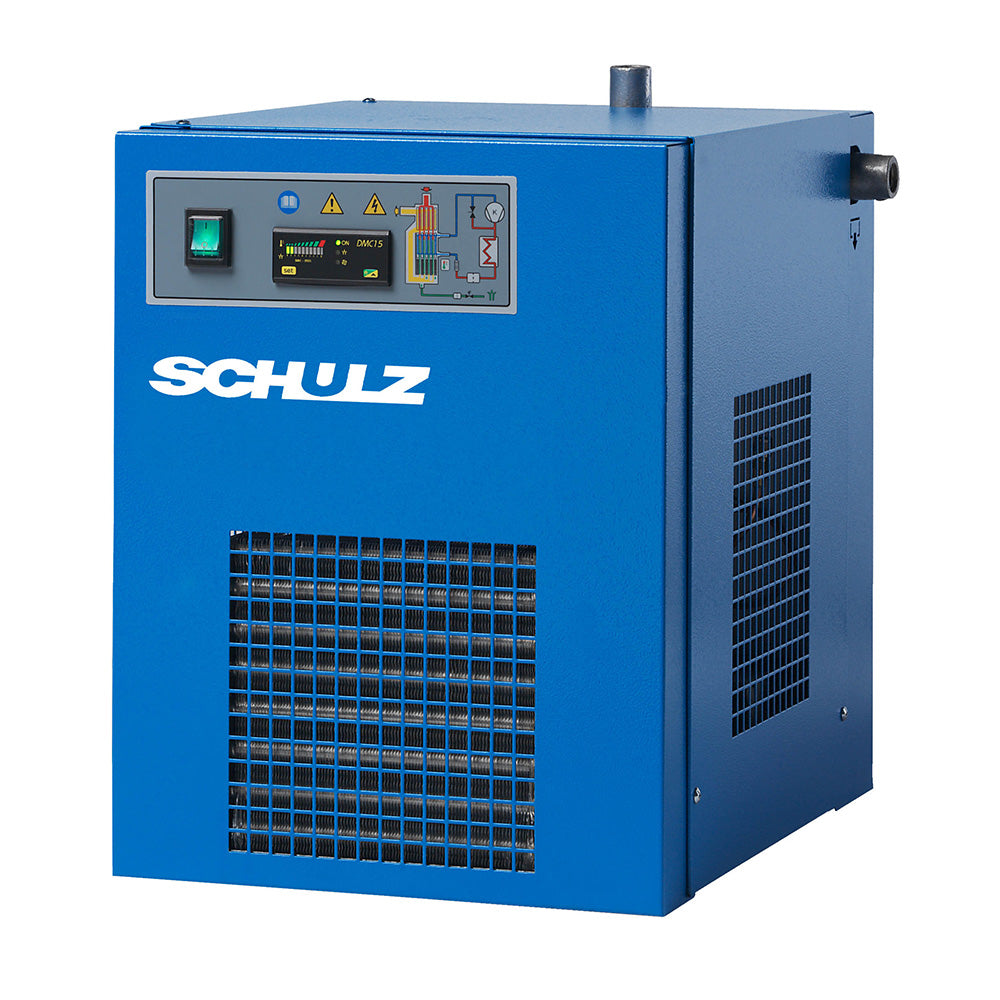

Disclaimer: Image shown is for reference only; actual product may vary.

Schulz

375 SCFM Non-Cycling Refrigerated Air Dryer, 230V, 1 Phase

SKU: 11-ACEAB8
(0)
$7,685.54
Direct To Consumer
Available To Order – Call Us for Details
Fast & Reliable Shipping
100% secure payments
Industry leading quality
Shipping Address

Got questions?

Feel free to get in touch

  • Vendor Schulz
  • Product Weight 212.0 lb
  • Dimensions (LxWxH) 24.625 in x 21.875 in x 38.375 in
  • connection 2"NPT-F
  • max psig 203
  • nominal cfm 375
  • phase 1
  • psig 100
  • refrigerant type R407C
  • style Non-Cycling Air Dryers
  • vendor part number ADS-375
  • voltage 230/1/60
Non-Cycling Air Dryers
  • Flow: 375 SCFM or 10,613 l/min or 637 m3/h
  • Nominal Air Pressure: 100 PSIG/7 Barg
  • Max Air Pressure: 203 PSIG/14 Barg
  • Wire/AWG: 6 GA
  • Schulz ADS series
  • Equipped with a quick-disconnected automatic drain valve
  • Can work with inlet and room temperatre up to 100°F
