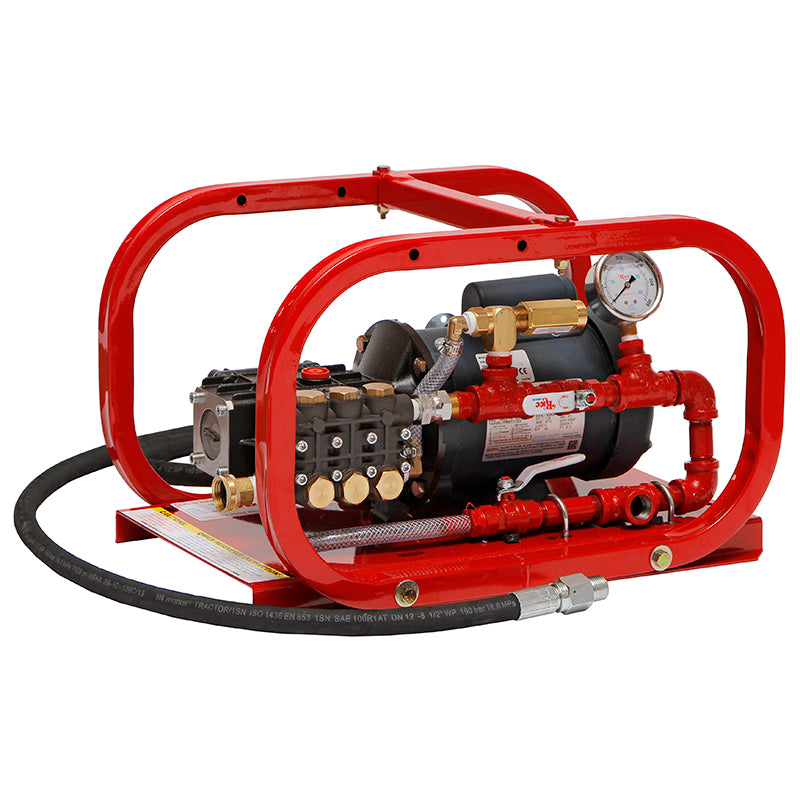

EL Hydrostatic Electric Series
The EL-series is a low volume medium pressure line of hydrostatic test pumps designed for testing any small water line or pressure system. This lightweight compact design combines the versatility of indoor/outdoor use along with simple operation. Standard power sources include, 1 HP, 50/60 HZ, 115 volt, 15 amp electric motor. Thanks to its stainless steel vibration dampening liquid-filled gauge, smooth and accurate readings become the rule, not the exception. Electric motors are available in varieties of phase, voltages and explosion proof models.
Applications
The EL-series test pumps are ideal for testing sprinkler systems, irrigation lines, plant piping and pressure vessels.
Features:
- 300 PSI
- 3 GPM
- Inlet: 3/4" garden hose swivel
- Outlet: 1/2" hose
- Motor: 1/2 HP, TEFC, 110/120 V, 60 HZ, 1Phase
- Brass Unloader Valve to Regulate Pressure
- High Pressure Ball valve to Isolate Test Pressure
- Pressure Test Gauge
- Adjustable Pressure
- Fully adjustable regulator, bypassing the inlet side of the pump
- Enclosed in a virtually indestructible heavy duty welded steel roll cage
- 8 foot high pressure hose with 1/2" quick connect coupling
- Constructed in the USA
