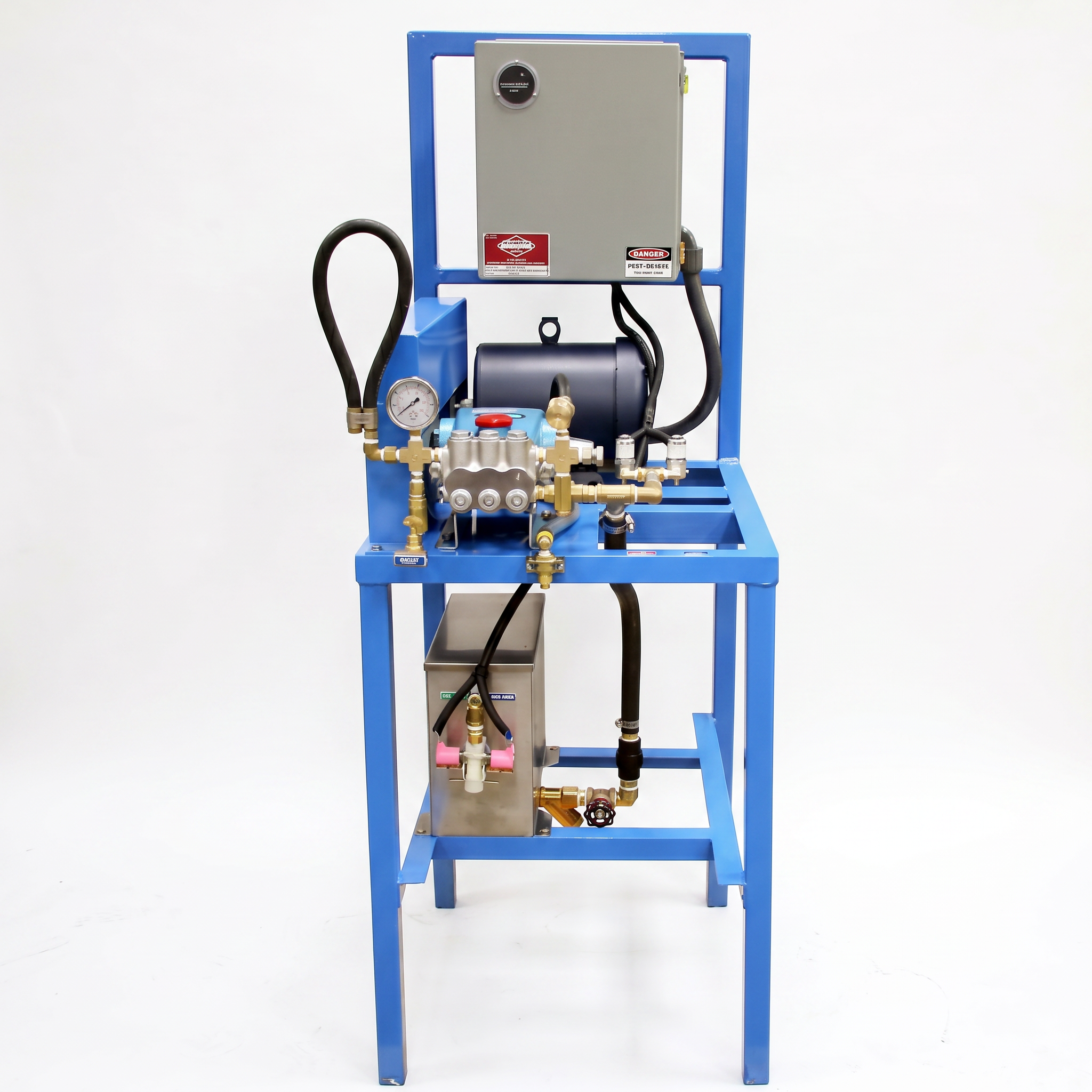

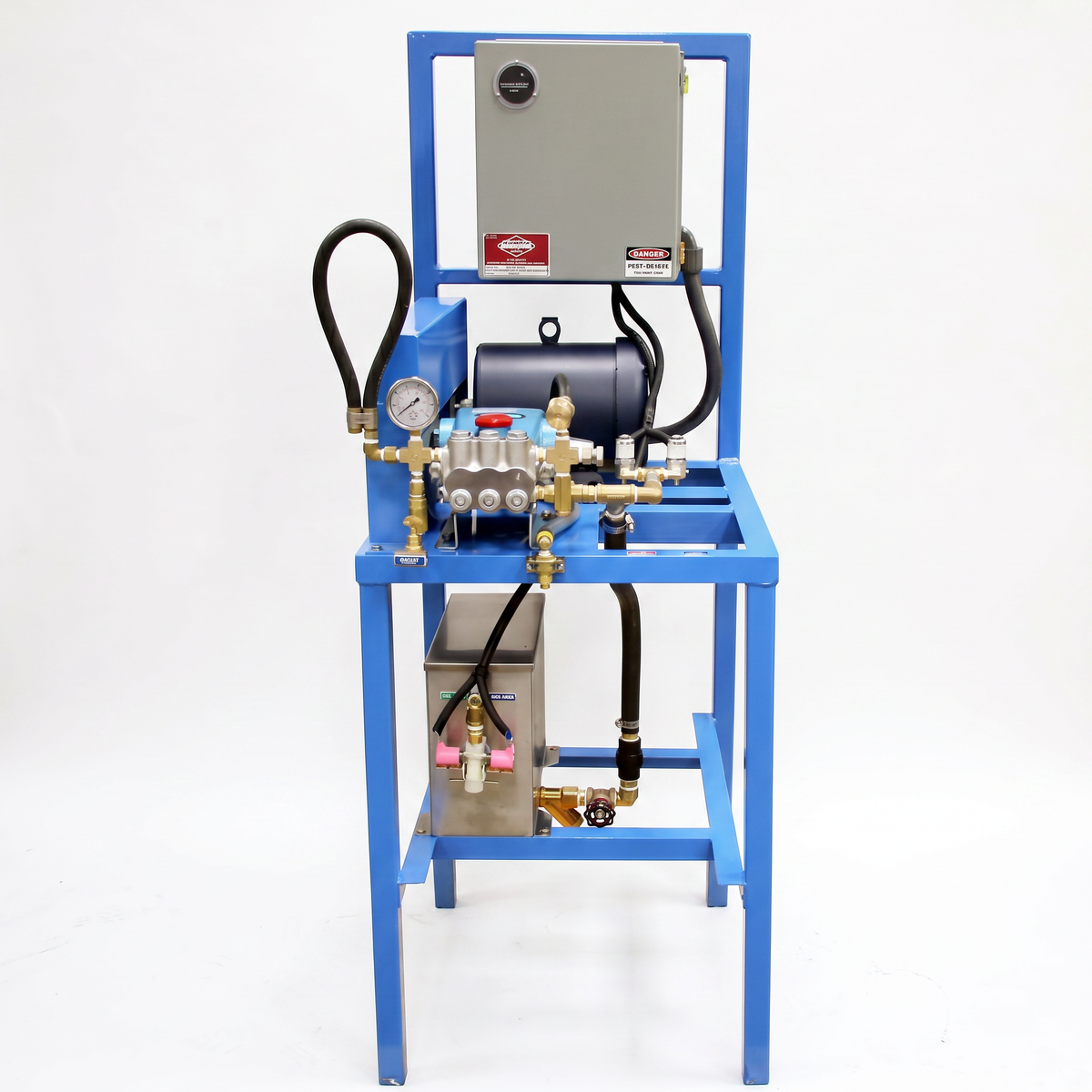

2300 PSI Car Wash Pump Station, 208V, 1 Phase

Singles and Double Pump Stations for Truck Wash

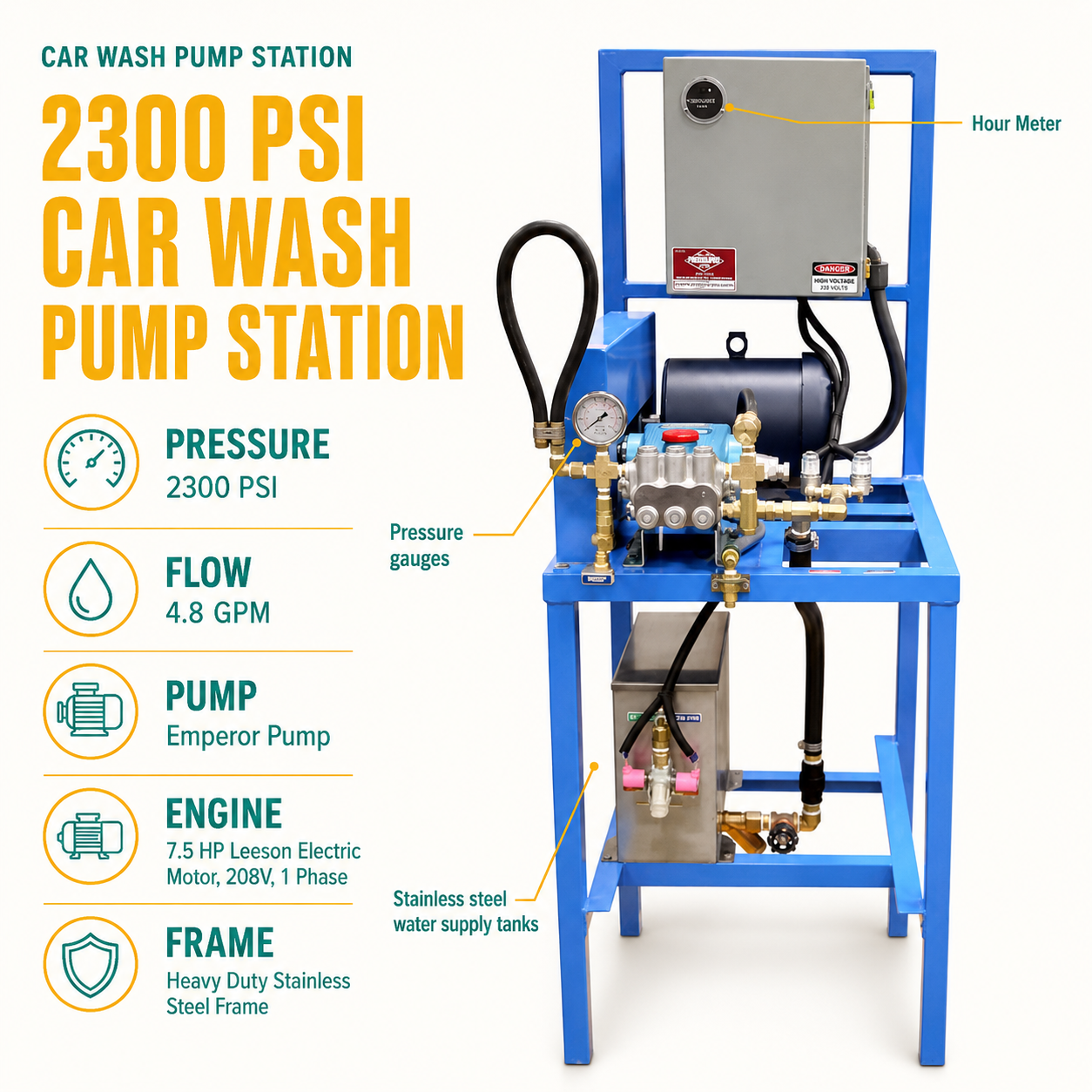

• 2300 PSI
• 4.8 GPM
• Emperor Pump (2 year warranty)
• 7.5 HP Leeson Electric Motor/ 208V/ 1 Phase (22 Amps) - (1 year warranty)
• Single phase also available (Call for Pricing)
• Heavy Duty Stainless Steel Frame (Bench Style)
• Electrical Panels; high quality solid state controls (UL listed)
• Stainless steel water supply tanks
• Double inlet design for hot and cold water inlets

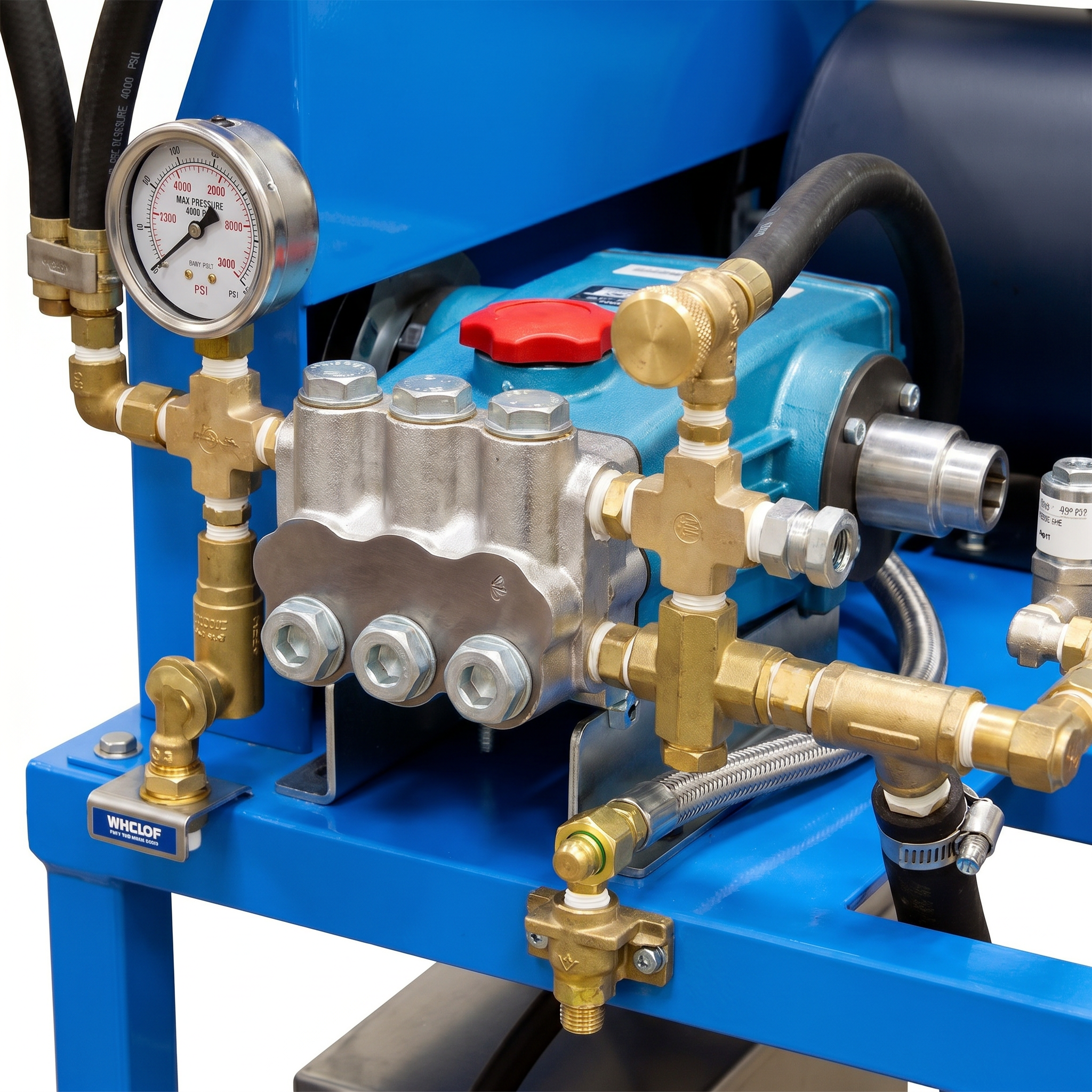

• Pressure gauges with stainless steel case, glycerin-filled for accurate reading
• Hour Meter for indication of pump system run time for maintenance and service
• Balanced pressure relief valve allows for use of the trigger gun as well as protecting system against damage from excessive pressures
• Automatic shut down for operator control at wand
• Dimensions are 62" H x 29" D x 22" W for Single Pump Stations (Dual are 44" W)

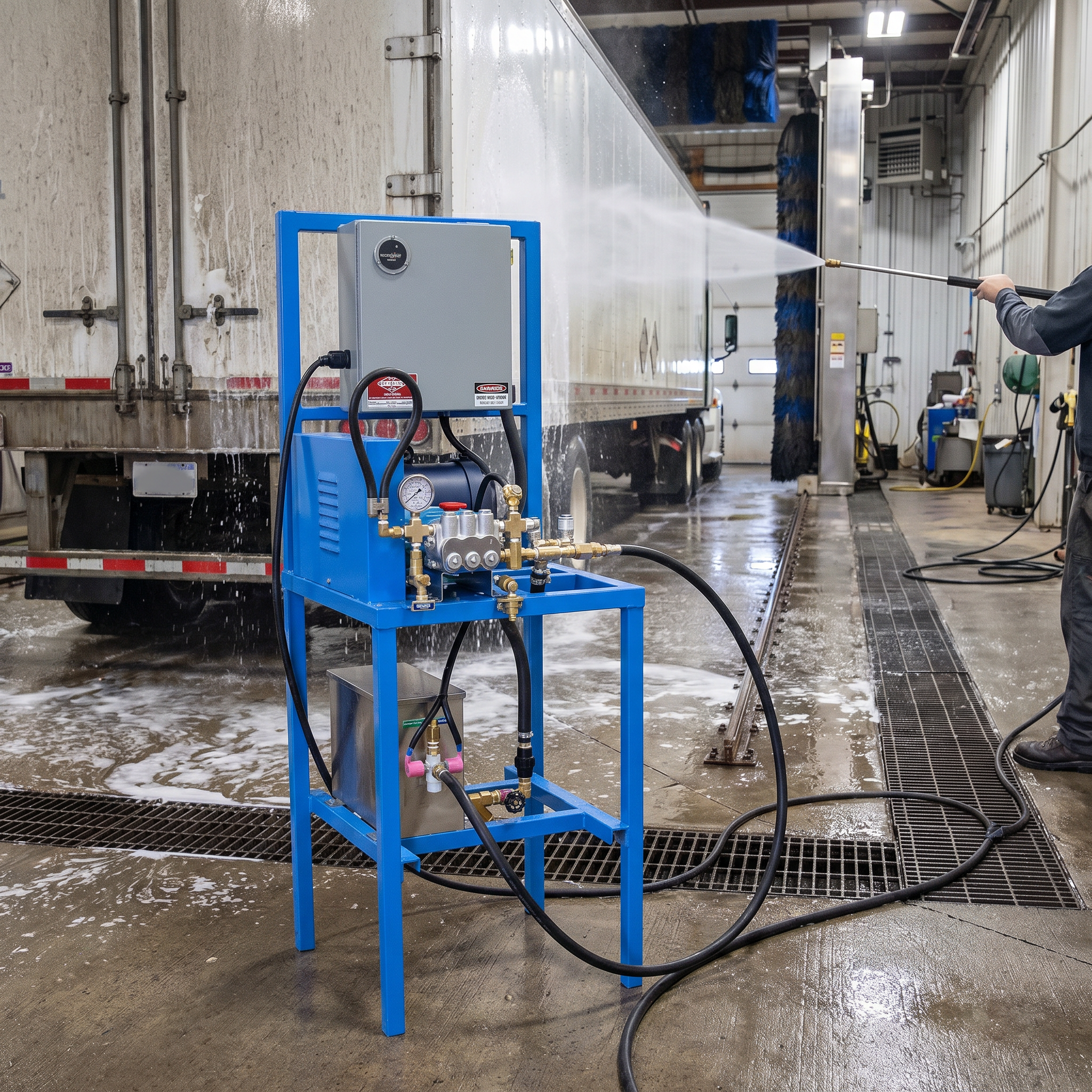

These pump stations feature sturdy steel frames with baked enamel finish. Each leg has adjustable levels. Systems are pre-plumbed and wired for low voltage. Pumps choices include CAT, Hypro, General, AR, or Giant. CAT Pumps are featured in models depicted and indicated below with pricing. Stations with 4 or more pump systems for multiple bay configurations available upon request. Ultimate Washer can also provide a full array of accessories for vehicle wash such as wax or foam brushes, detergents, water softeners, coin and currency boxes, and boom packages. Pump stations are an integral part of any car wash setup. Whether your intended use is for car wash, boat wash, or truck wash, these systems can handle it all. Ideal for self service car wash applications.
