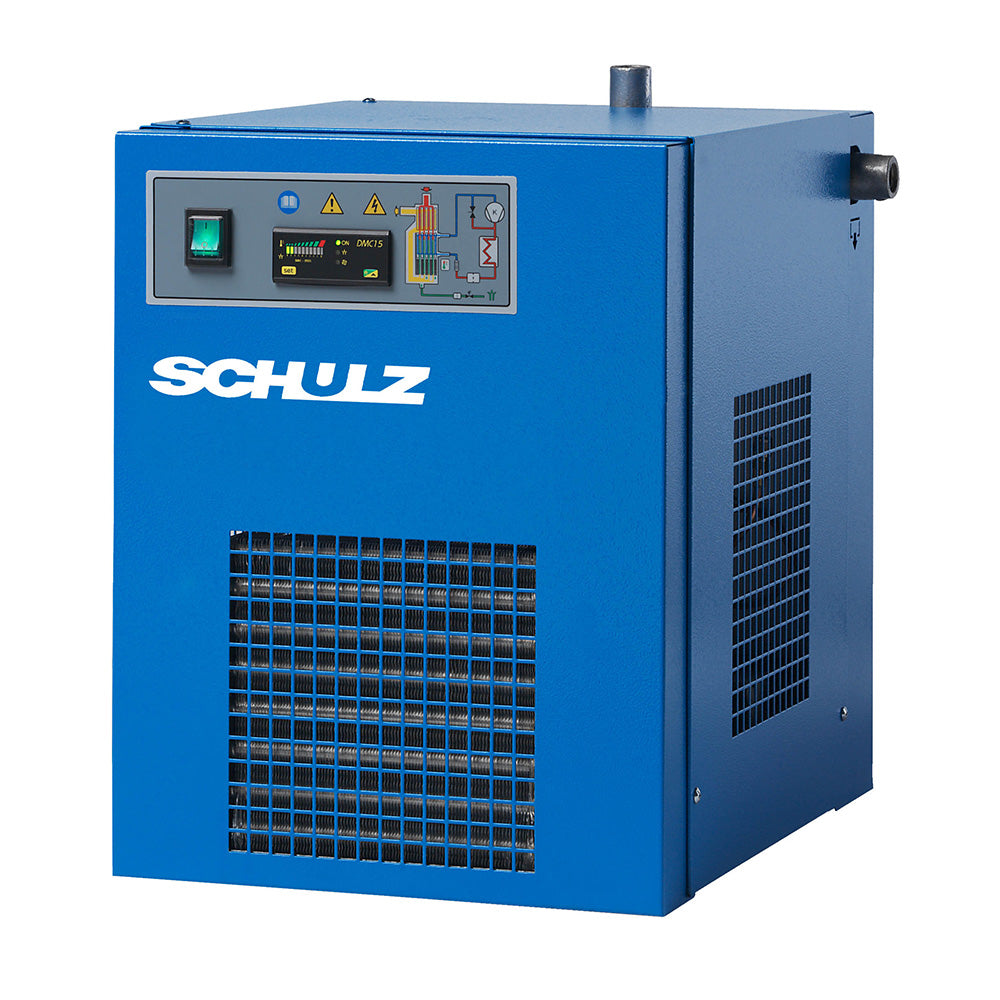

220 SCFM Non-Cycling Refrigerated Air Dryer, 230V, 1 Phase
220 SCFM Non-Cycling Refrigerated Air Dryer, 230V, 1 Phase

Disclaimer: Image shown is for reference only; actual product may vary.

Schulz

220 SCFM Non-Cycling Refrigerated Air Dryer, 230V, 1 Phase

SKU: 11-AC02F4
(0)
$5,117.53
Direct To Consumer
Available To Order – Call Us for Details
Fast & Reliable Shipping
100% secure payments
Industry leading quality
Shipping Address

Got questions?

Feel free to get in touch

  • Vendor Schulz
  • Product Weight 123.0 lb
  • Dimensions (LxWxH) 22.8125 in x 21.875 in x 34.8125 in
  • connection 1-1/2"NPT-F
  • max psig 203
  • nominal cfm 220
  • phase 1
  • psig 100
  • refrigerant type R407C
  • style Non-Cycling Air Dryers
  • vendor part number ADS-220
  • voltage 230/1/60
Non-Cycling Air Dryers
  • Flow: 220 SCFM or 6226 l/min or 374 m3/h
  • Nominal Air Pressure: 100 PSIG/7 Barg
  • Max Air Pressure: 203 PSIG/14 Barg
  • Wire/AWG: 14 GA
  • Schulz ADS series
  • Equipped with a quick-disconnected automatic drain valve
  • Can work with inlet and room temperatre up to 100°F
