Disclaimer: Image shown is for reference only; actual product may vary.

GoHz

150kVA 460 60Hz to 415V/400V 50 Hz Converter

SKU: HZ-50-33150
(0)
$48,250.07
Direct To Consumer
Available To Order – Call Us for Details
Fast & Reliable Shipping
100% secure payments
Industry leading quality
Shipping Address

Got questions?

Feel free to get in touch

  • Vendor GoHz
  • Product Weight 1764.03 lb
  • input frequency 50 Hz, 60 Hz or 400 Hz ± 5%
  • input voltage 380/220, 400/230, 415/240, 440/254, 460/265, 480/277
  • output frequency 50 Hz, 60 Hz up to 400 Hz adjustable
  • output voltage 110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 418A 220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 209A
Features
  • The frequency converter is suitable for use with resistive, capacitive, inductive and non-linear loads.
  • Full galvanically isolated, no harmonic distortion (EMI, EMC)
  • Pure sine wave output
  • Sustained 300% overload capability
  • IGBT/PWM technology enhances compact size, low noise and high reliability
  • Adjustable 0 to 300VAC output voltage
  • Fast response time
  • Capable to simulate global voltage, frequency power supplies

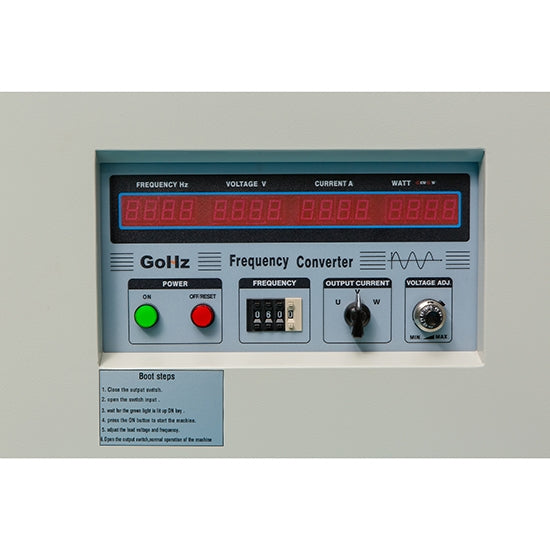

  • Precise 4 LED digital display output frequency, voltage, ampere and wattage.

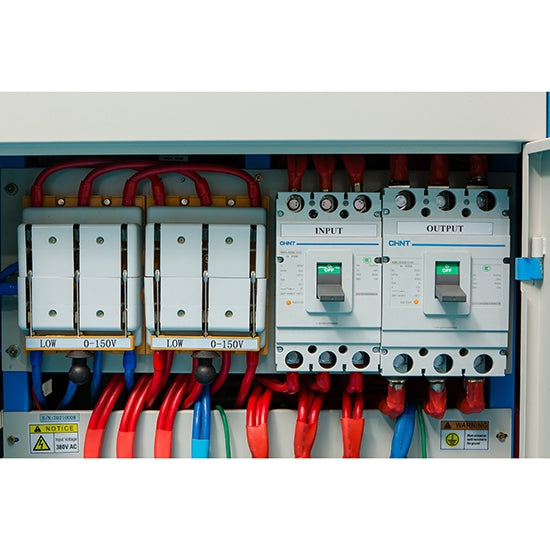

  • These frequency converters are equipped with electronic circuit/instant trip breaker/buzzer
    alarm for over voltage, over current, over temperature, output short circuit protection.
  • 50Hz, 60Hz or 400Hz input frequency
  • Adjustable 40.0 to 499.9Hz output frequency
