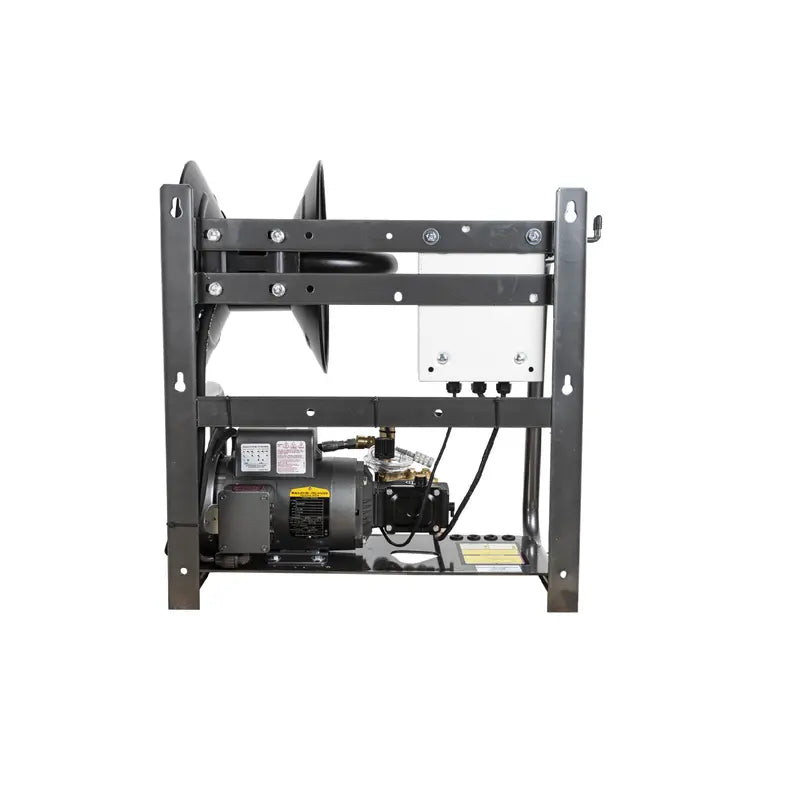

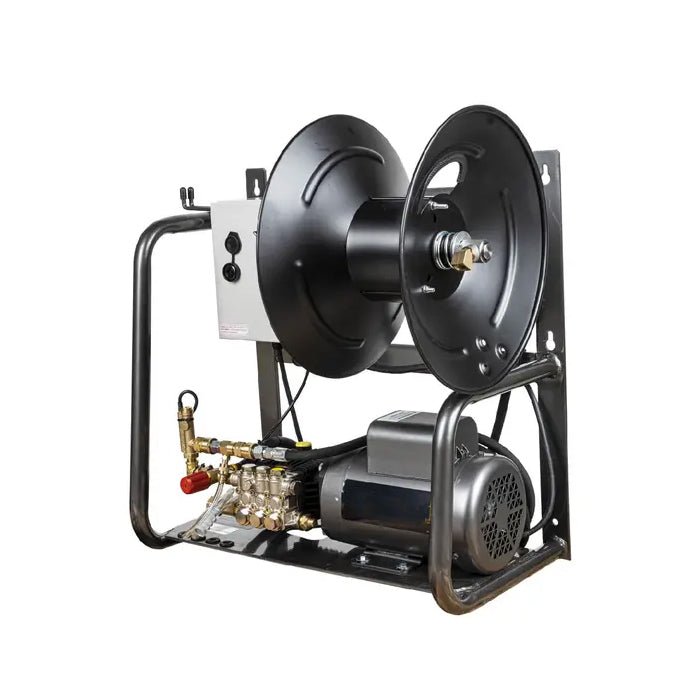

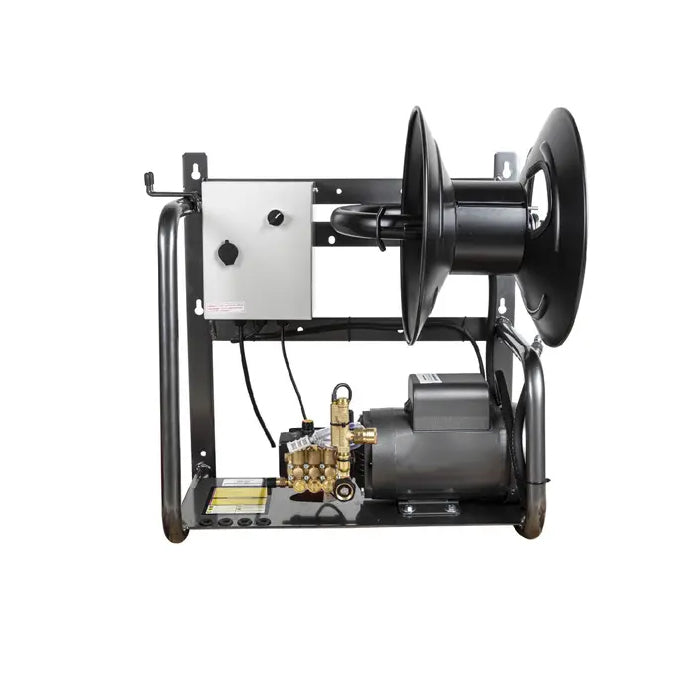

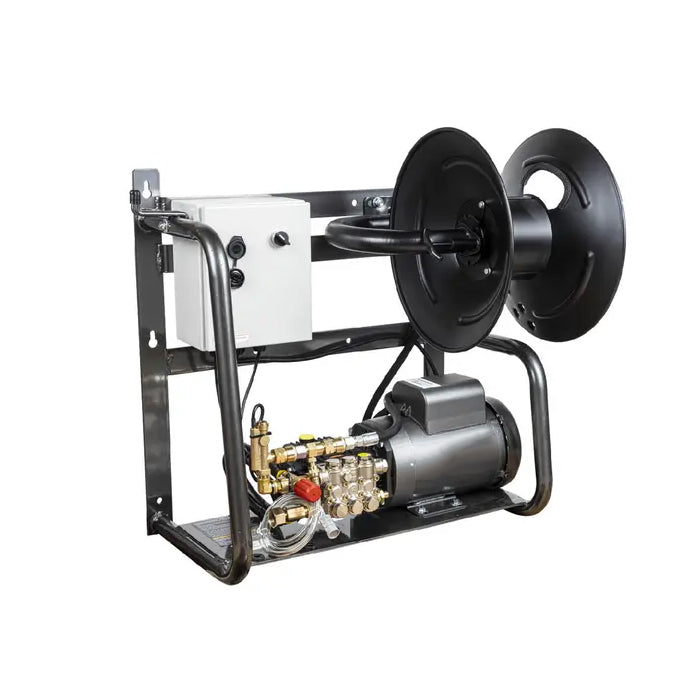

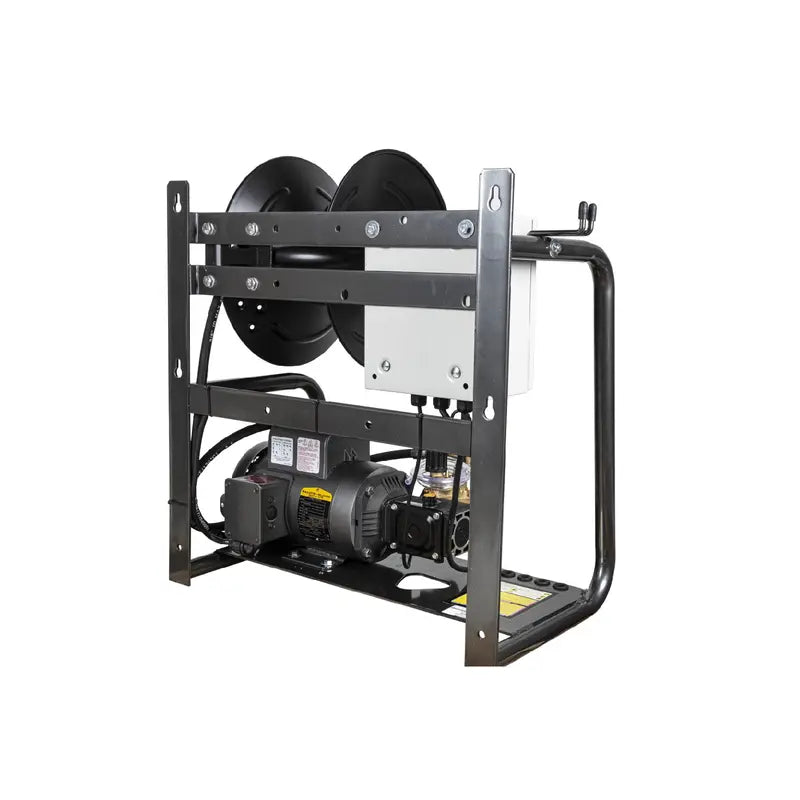

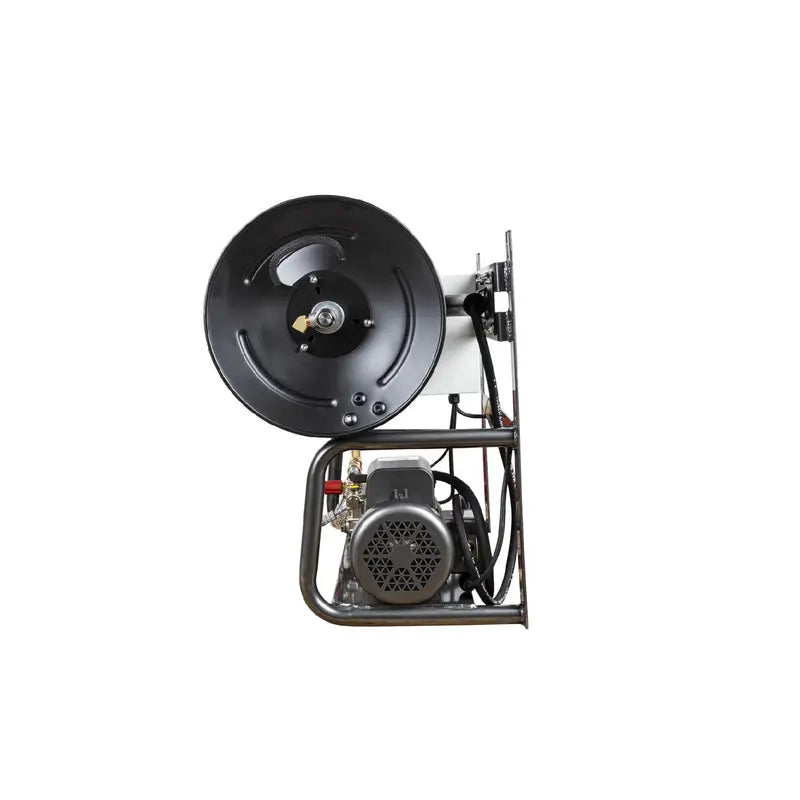

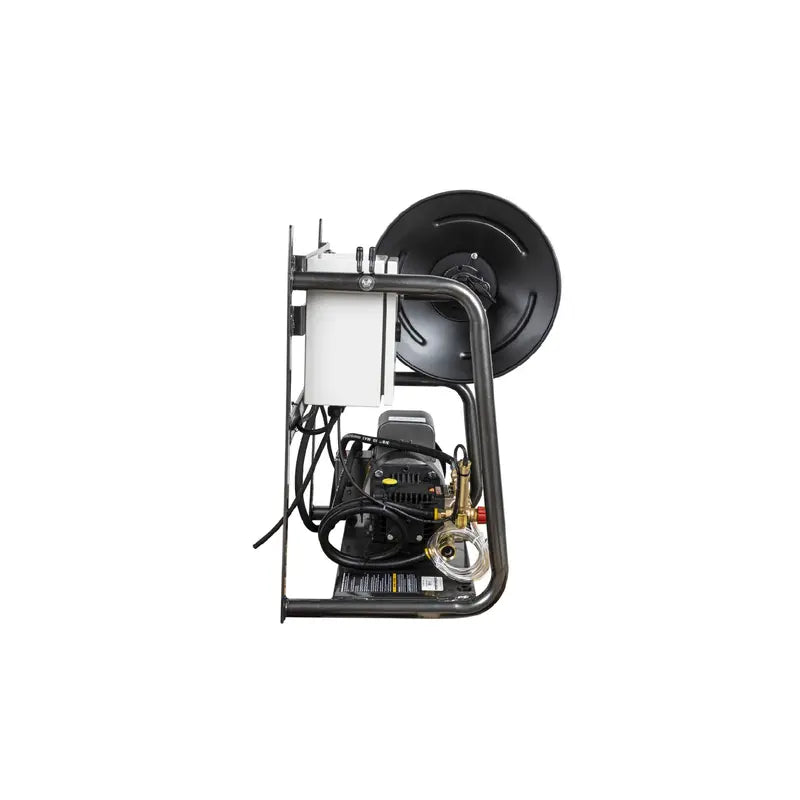

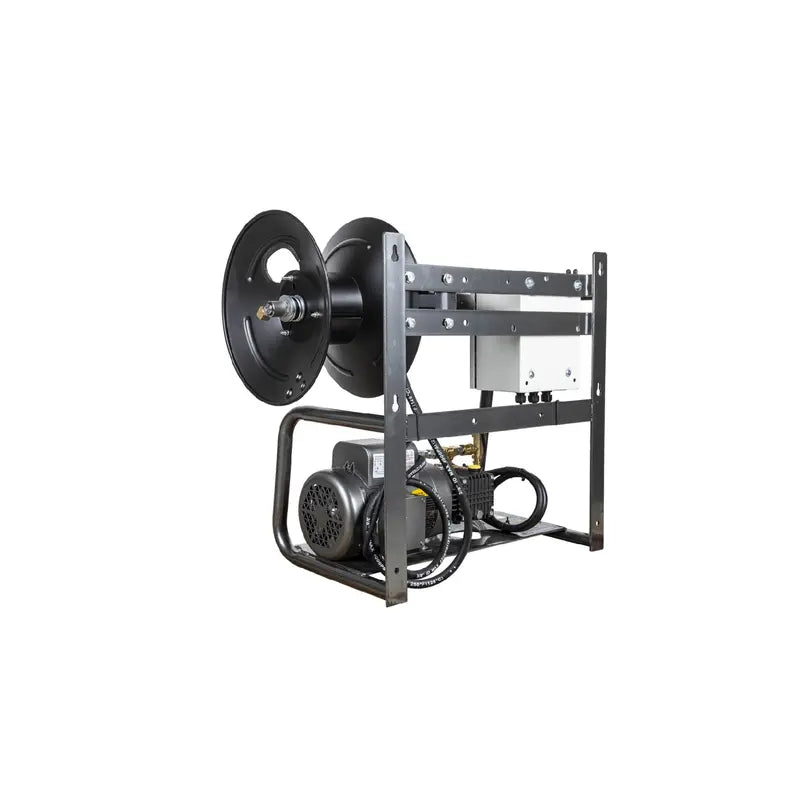

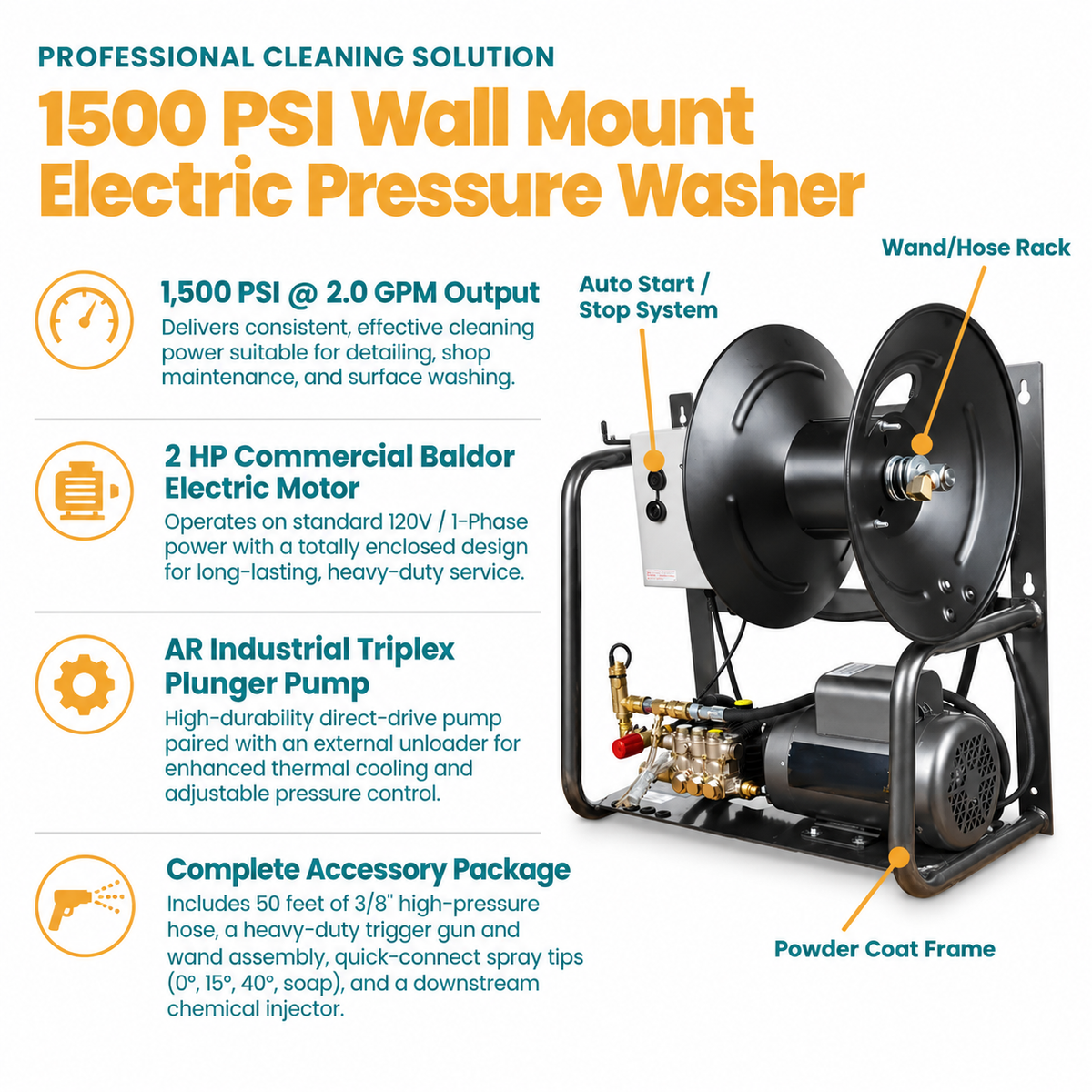

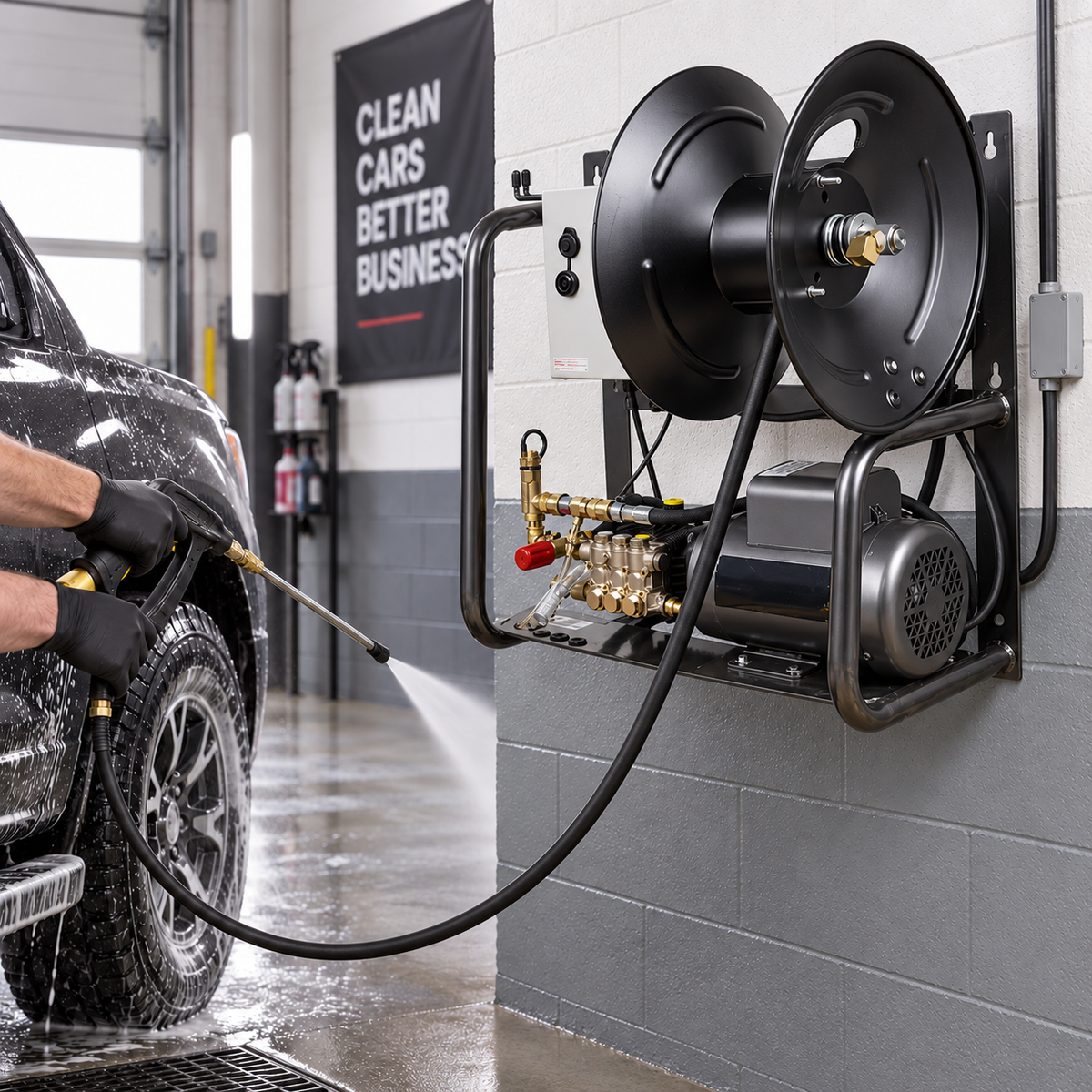

Designed for locations where floor space is limited, the X-1520FW1ARH mounts directly to the wall and keeps the hose, wand, and accessories organized and off the floor. Its reinforced 111 Small Wall Mount Frame features powder-coated steel construction and integrated hose and accessory storage, making it well suited for automotive service bays, detail shops, warehouses, maintenance facilities, food service areas, and other commercial cleaning applications.
-
1,500 PSI at 2.0 GPM for commercial cold water cleaning applications
-
2.0 HP Baldor electric motor with 120V single-phase power and 17-amp operation
-
CP CTE1 P5 commercial triplex pump with built-in unloader, fixed chemical injector, and thermal relief valve
-
Auto start/stop automatically stops the motor when the trigger is released and restarts it when the trigger is pulled
-
Electric direct drive connects the motor directly to the pump for a compact wall mount configuration
-
120V operation with NEMA 5-20P plug included; requires a dedicated 20-amp 120V outlet
-
29.5-foot power cord for flexible installation positioning
-
111 Small Wall Mount Frame with reinforced powder-coated steel construction
-
Integrated hose and accessory storage keeps equipment organized and off the floor
-
50-foot x 3/8-inch QC single-wire braided rubber hose provides extended working reach
-
36-inch insulated QC gun/wand assembly for controlled cleaning and added reach
-
Four quick-connect nozzles: 15°, 25°, 40°, and Soap
-
Fixed chemical injector for detergent application with the soap nozzle
-
Thermal relief valve helps protect the pump during extended idle operation
-
Commercial-duty construction suited to automotive, maintenance, warehouse, and facility cleaning
-
Motor warranty: 2 years
-
Pump warranty: 5 years
-
Factory tested before shipment
