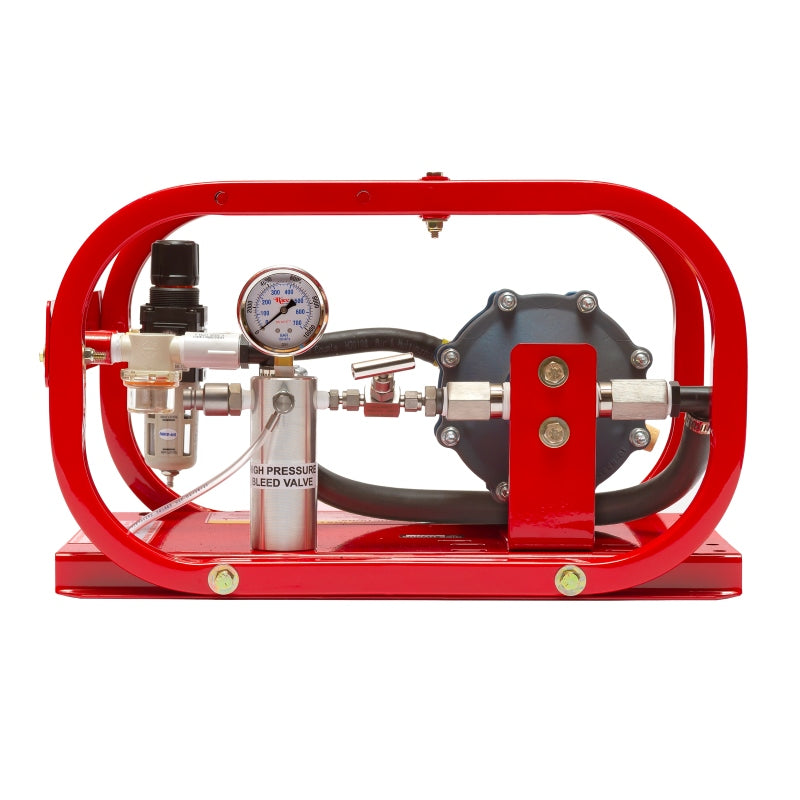

10000 PSI Hydrostatic Test Pump

HP Pneumatic Series

The HP-Series of pneumatic hydrostatic test pumps are compact, versatile, air driven units, designed for testing environments where dangers of spark or explosion are prevalent. The pneumatic series uses a reciprocating air driven plunger assembly. Designed for maximum performance and to withstand the test of time, these easy to use pumps are made with premium high pressure fittings and components, and are protected in a steel roll cage. The stainless steel liquid-filled gauge ensures accurate readings with less flutter.

Applications

Lightweight and portable, these high pressure units are ideal for anywhere standard shop air is easily accessible. Designed for testing in small confined spaces or remote locations such as on board ships and oil rigs.

Features

• Max Pressure: 10,000 PSI
• Water Inlet: 3/4" female hose swivel
• Air Inlet: 3/8" FNPT
• Outlet: 3/8" high pressure 8 FT outlet hose
• Uses Air Motor Assembly
• Low Pressure Kit, Increases Existing Range of Pressure up to Four Times
• High Pressure Needle Valve Quickly Bleeds Off Air and Releases Pressure
• Pressure Test Gauge
• Adjustable Pressure Regulator
• Needing only standard shop air, this unit is convenient and easy to use
• Stainless 100 mesh strainer for pump protection from debris
• High pressure valve for removal of air and pressure release
• Enclosed in a virtually indestructible heavy duty, welded, powder coated, steel frame
• Constructed in the USA
