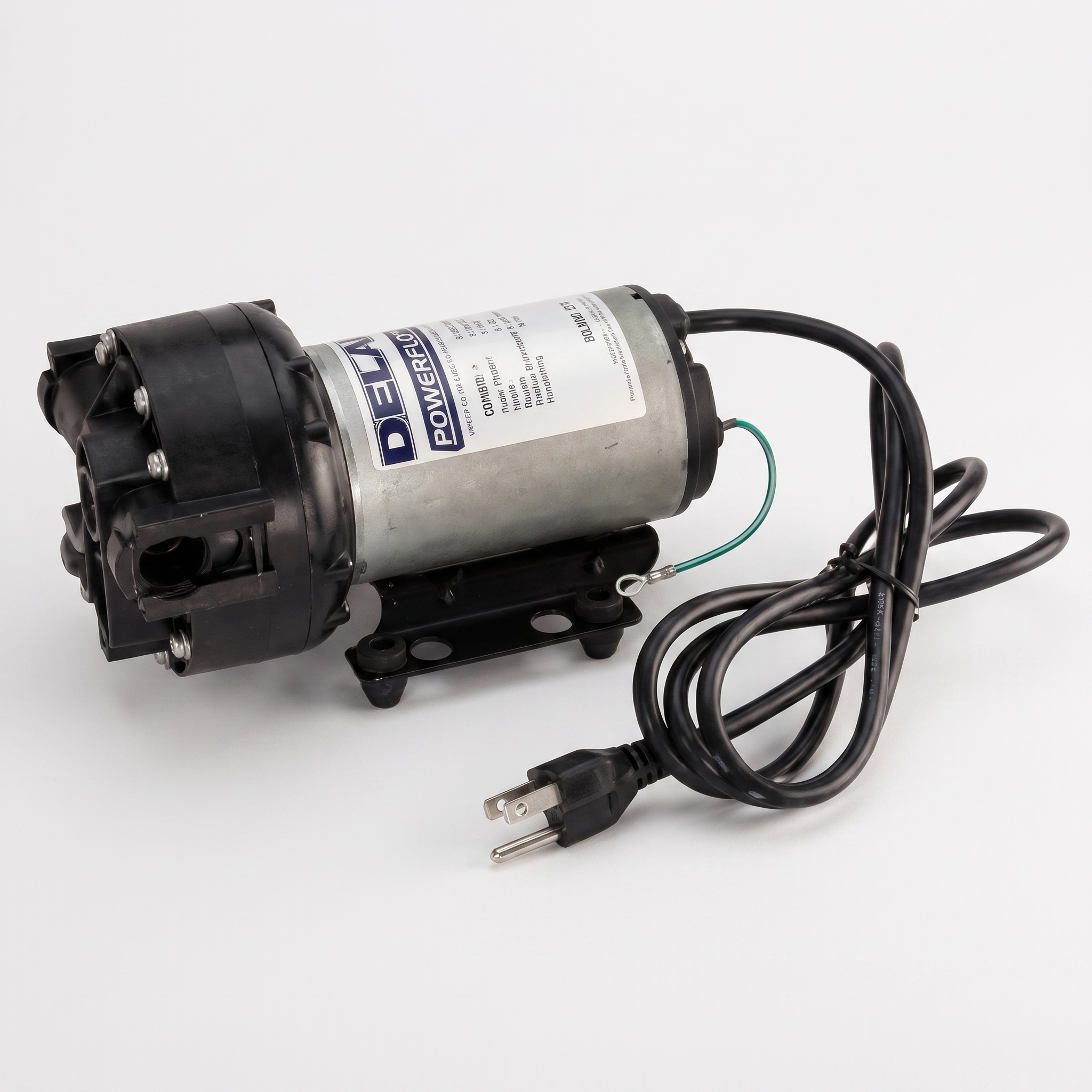

3.0 GPM Transfer Pump
3.0 GPM Transfer Pump infographic

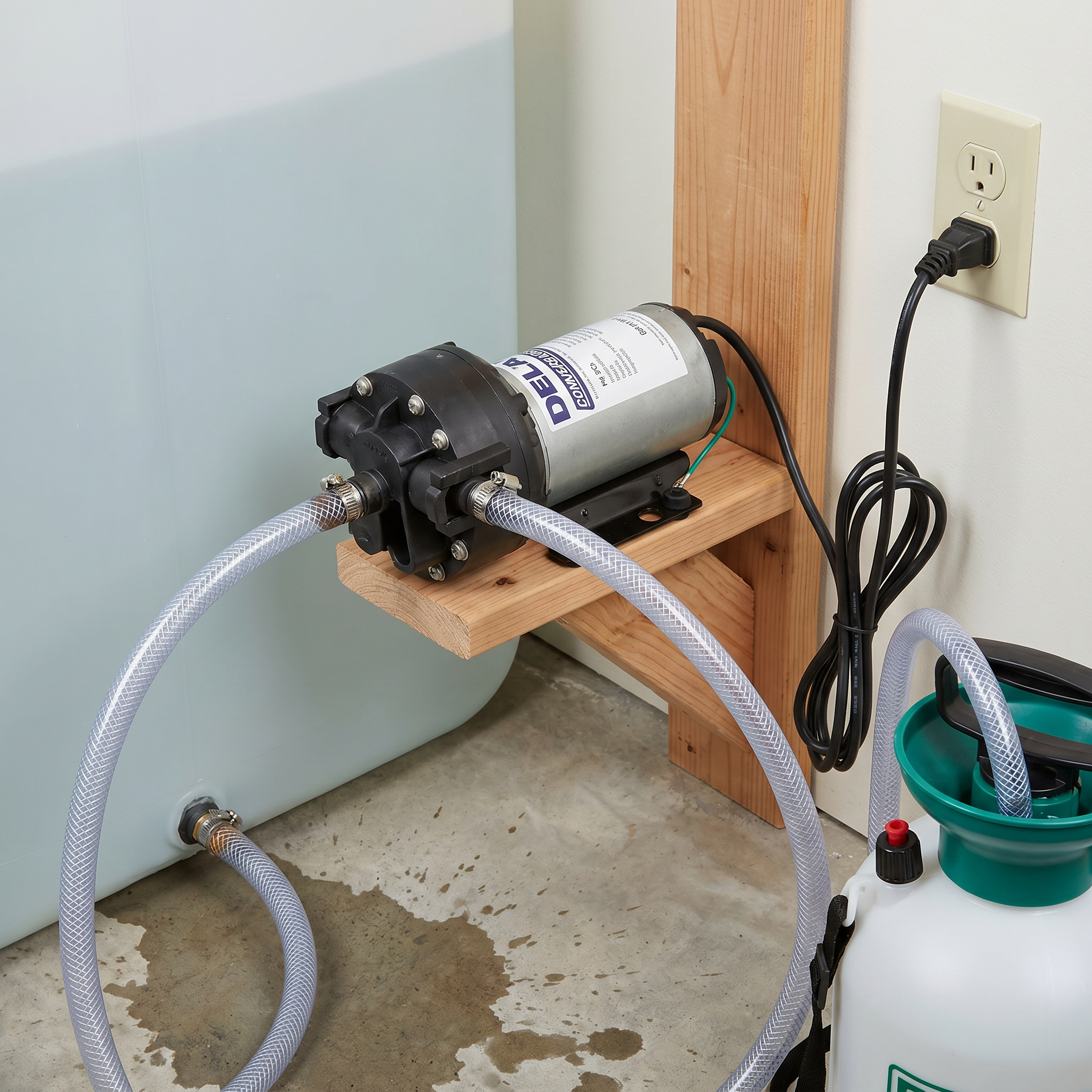

The electric diaphragm transfer pump mounted on a wooden wall bracket, plugged into a wall outlet and connected via clear braided hoses to pull fluid from a white chemical sprayer tank.
3.0 GPM Transfer Pump
3.0 GPM Transfer Pump infographic
The electric diaphragm transfer pump mounted on a wooden wall bracket, plugged into a wall outlet and connected via clear braided hoses to pull fluid from a white chemical sprayer tank.

Disclaimer: Image shown is for reference only; actual product may vary.

Delavan AG Pumps

100 PSI 110V on Demand Transfer Pump

SKU: 5830-104E
(0)
$293.21
Direct To Consumer
Available To Order – Call Us for Details
Fast & Reliable Shipping
100% secure payments
Industry leading quality
Shipping Address

Got questions?

Feel free to get in touch

  • Vendor Delavan AG Pumps
  • Product Weight 15.0 lb
  • inlet 1/2" FNPT
  • max gpm 3
  • max psi 100
  • max temperature f 140
  • outlet 1/2" FNPT
  • priming capabilities 14 ft

Pump Features:

  • Pump Head: 5 chambers, positive displacement diaphragm pump, self priming, capable of being run dry.
  • Maximum capability of 5 GPM
  • Certifications: NSF Standard 58
  • Demand or Bypass mode available: demand is equipped with pressure switch that will shut down the pump if the pressure goes too high (45 PSI, call us for different levels). On bypass pumps, the pump will NOT shut off and the water will recirculate to the inlet side.
  • Liquid temperature: 140°F Max
  • Priming Capabilities: 14 feet
  • Max Pressure: 100 PSI
  • Inlet/Outlet: 1/2" FNPT
  • View dimensions



Motor Features:

  • 12 VDC battery, totally enclosed, non-ventilated (115 VAC available)
  • Leads: 14 AWG, 12" Long
  • Temperature Limits: Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 180°F
  • Maximum torque and operating efficiency; higher operating pressure and/or lower amperage than competitive pumps
  • Quality components for extreme performance
  • Numerous fitting option for greater mounting flexibility
  • On Demand Pump - Pumps water when pressure drops below 60 PSI, and shuts off when reaches 60 PSI



Performance:  For 5830-104E

PSI GPM Amps
10
20
30
40
50
60

3.20
2.80
2.65
2.45
2.20
2.00

 3.5
5.8
7.2
8.3
9.1
9.9
